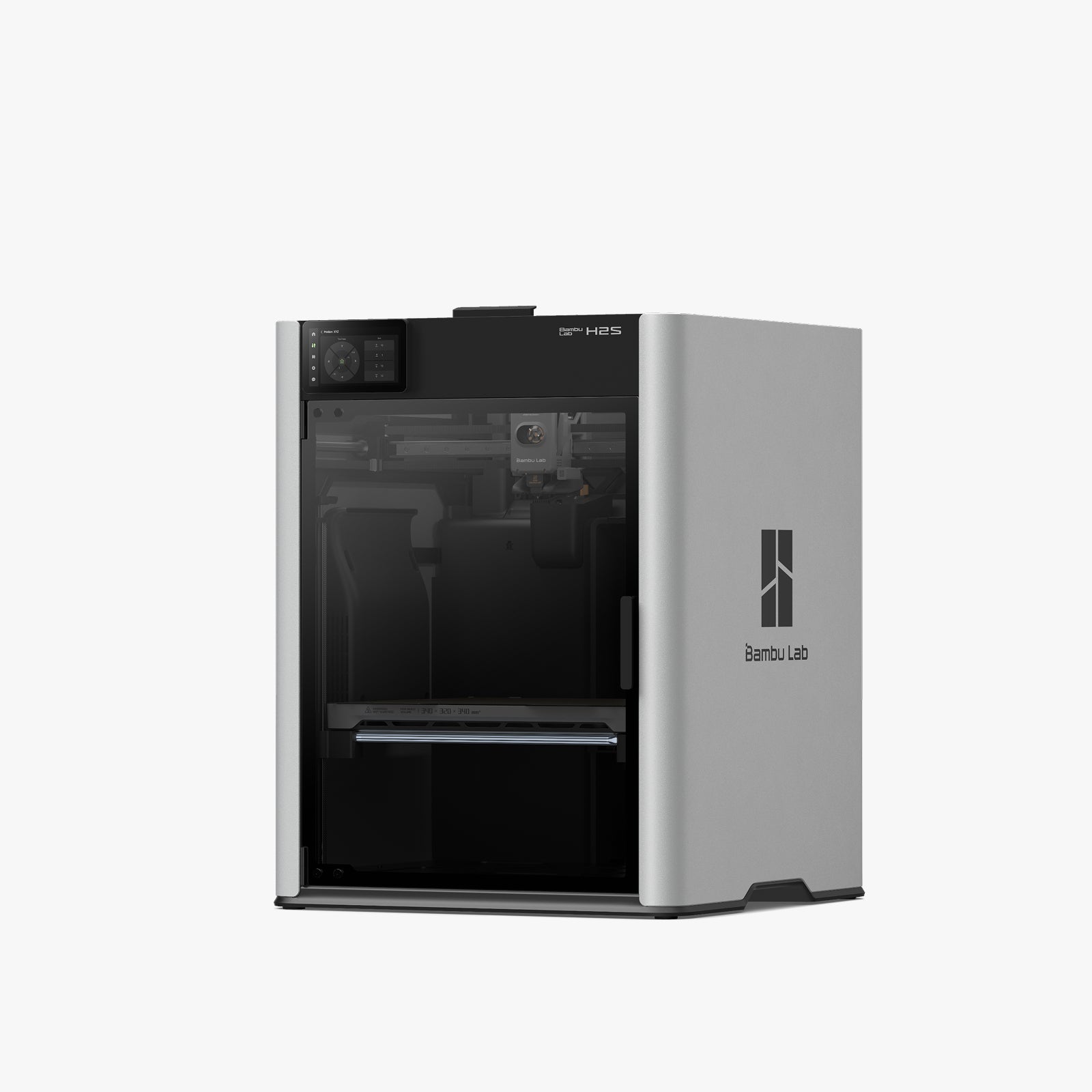

Bambu Lab - H2S
S***PRE-ORDER WELCOME!! Pre-order item usually ships within 14 days (please contact us for updates).***
Product Features
- AI detection with 23 Sensors & 3 Cameras
- 340×320×340 mm³ Large Volume
- 20,000 Times/Sec
- less than 5μm Resolution Optical Motion Calibration
- Up to 30% Faster Print Speed
- 10W 455nm Laser Cutting
- 65 °C Active Heated Chamber
- Auto Venting for Filament Drying
- Voltage Range: 100-120 V(China Taiwan)
- Voltage Range: 200-240V(Singapore/Thailand/Malaysia/China Hong Kong/China Macao)
Bambu Lab H2S Video
H2D Tech Specs
| Printing Technology | Fused Deposition Modeling |
| Body | |
| Build Volume (W×D×H) | 340*320*340 mm³ |
| Chassis & Shell | Aluminum, Steel, Plastic and Glass |
| Laser Safety Windows | Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit |
| Air Assist Pump | Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit |
| Physical Dimensions | |
| Physical Dimensions | 492*514*626 mm³ |
| Net Weight | H2S: 30 kg H2S Laser Edition: 30.5 kg |
| Toolhead | |
| Hot End | All-Metal |
| Extruder Gears | Hardened Steel |
| Nozzle | Hardened Steel |
| Max Hot End Temperature | 350 ℃ |
| Nozzle Diameter (Included) | 0.4 mm |
| Supported Nozzle Diameter (Optional) | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Filament Cutter | Built-in |
| Filament Diameter | 1.75 mm |
| Extruder Motor | Bambu Lab High precision Permanent Magnet Synchronous Motor |
| Heat Bed | |
| Supported Build Plate Type |
Textured PEI plate, Smooth PEI Plate
|
| Max Build Plate Temperature | 120 ℃ |
| Speed | |
|
Max Speed of Toolhead
|
1000 mm/s |
| Max Acceleration of Toolhead | 20,000 m/s² |
| Max Flow for Hotend (Standard Flow Hotend) |
40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
|
| Max Flow for Hotend (Optional High Flow Hotend) | 65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature) |
| Chamber Temperature Control | |
| Active Chamber Heating | Supported |
| Max Temperature | 65 °C |
| Air Purification | |
| Pre-filter Grade | G3 |
| HEPA Filter Grade | H12 |
| Activated Carbon Filter Type | Granulated Coconut Shell |
| VOC Filtration | Superior |
| Particulate Matter Filtration | Supported |
| Cooling | |
| Part Cooling Fan | Closed Loop Control |
| Auxiliary Part Cooling Fan | Closed Loop Control |
| Chamber Heat Circulation Fan | Closed Loop Control |
| Cooling Fan for Hotend | Closed Loop Control |
| Main Control Board Fan | Closed Loop Control |
| Chamber Exhaust Fan | Closed Loop Control |
| Supported Filament Type | |
| Supported | PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA CF/GF, PPS, PPS CF/GF |
| Sensors | |
| Live View Camera | Built-in; 1920*1080 |
| BirdsEye Camera | Built-in; 3264*2448 （Equipped with Laser Edition) |
| Toolhead Camera | Built-in; 1920*1080 |
| Door Sensor | Supported |
| Filament Run-Out Sensor | Supported |
| Filament Tangle Sensor | Supported |
| Filament Odometry | Supported with AMS |
| Power Loss Recover | Supported |
| Electrical Requirements | |
| Voltage | 100-120 VAC / 200-240 VAC, 50/60 Hz |
| Max Power* | 2050 W@220 V / 1170 W@110 V |
| Electronics | |
| Touchscreen | 5-inch 720*1280 Touchscreen |
| Storage | Built-in 8 GB EMMC and USB Port |
| Control Interface | Touch Screen, APP, PC Application |
| Neural Processing Unit | 2 TOPS |
| Software | |
| Slicer & Software |
Bambu Studio, Bambu Suite, Bambu Handy
Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported. |
| Supported OS | MacOS, Windows |
| Wi-Fi | |
| Operating Frequency |
2412-2472 MHz (CE/FCC), 2400-2483.5 MHz (SRRC) |
| Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE) |
| Wi-Fi Protocol | IEEE 802.11 a/b/g/n |
Bambu Lab - H2S
Sale price$9,980.00
